How to Choose Copper Cable Lugs for Crimping, Panel Wiring, and Power Cable Termination
Copper cable lugs look simple, but a wrong selection can create installation delays, poor crimping quality, overheating risk, and repeated RFQ revisions. For panel builders, electrical contractors, distributors, and power project buyers, the correct lug must match the conductor, terminal equipment, crimping tool, and project documentation.
This guide explains the main points to confirm before ordering copper cable lugs.
Start with conductor size and cable type

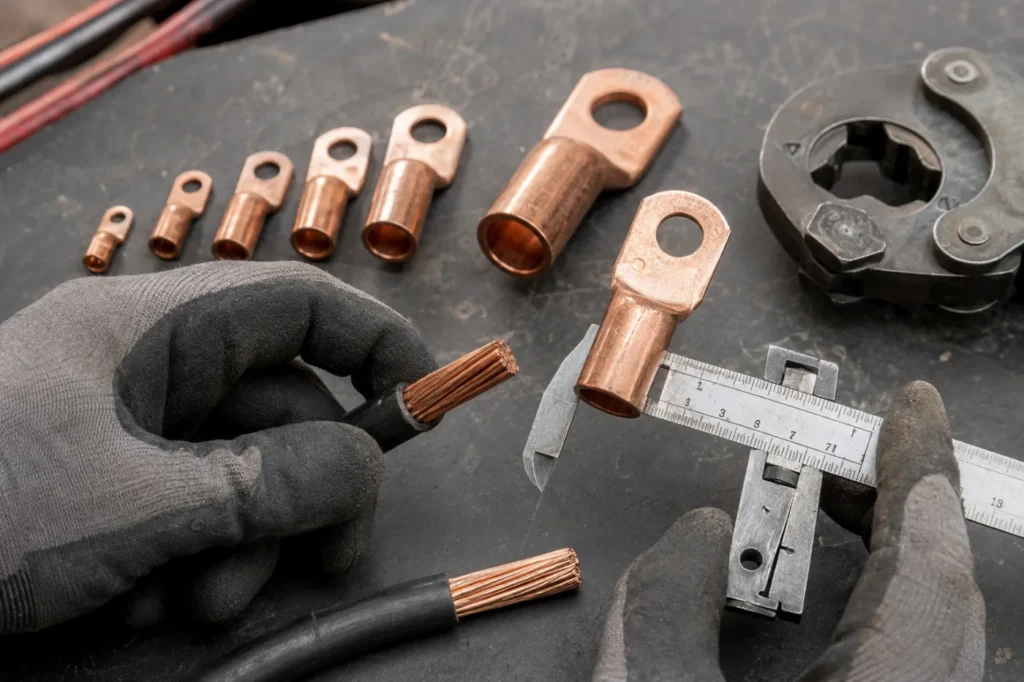

The first selection point is conductor size. A copper cable lug must match the conductor cross-section, such as 10 mm2, 16 mm2, 25 mm2, 35 mm2, 50 mm2, 70 mm2, 95 mm2, or larger project sizes.
The buyer should also confirm whether the conductor is stranded copper, flexible copper, or another structure. Flexible conductors may require different barrel dimensions or crimping considerations compared with standard stranded conductors.
Match the lug hole to the equipment terminal
After conductor size, confirm the bolt hole diameter. Common hole sizes may include M6, M8, M10, M12, or larger sizes depending on the busbar, breaker, panel terminal, transformer terminal, or grounding point.
If the hole is too small, the lug cannot be installed. If it is too large, the contact area and mechanical stability may be affected. For project orders, it is best to send the equipment terminal drawing or the required bolt size together with the conductor data.
Choose the right palm style
Copper cable lugs can have different palm shapes and lengths. Some projects need a standard palm, while others need a narrow palm, long palm, two-hole palm, angled palm, or custom arrangement.
Two-hole lugs are often used where vibration resistance, alignment, or larger contact area is required. Standard one-hole lugs are common for general cable termination and panel wiring.
Decide whether tin plating is required
Tin-plated copper lugs are commonly used to improve corrosion resistance and surface stability. Bare copper lugs may be acceptable in some indoor applications, but tin plating is often preferred for export projects, outdoor equipment, humid environments, or mixed-metal contact conditions.
Need cable products for your project?
For overseas projects, the RFQ should clearly state whether the buyer needs bare copper or tinned copper. If the project specification mentions surface treatment, attach that requirement during quotation.
Check crimping compatibility
The lug should match the crimping tool and die system used on site. Even if the conductor size is correct, a mismatch between barrel design and die type can lead to poor compression.
Before ordering large quantities, confirm:
- Crimping method
- Die size or tool model
- Number of crimps required
- Inspection requirement after crimping
- Whether a sample approval is needed
For contractors, this step helps avoid rework during installation.
Prepare documentation for bulk orders
For distributor and project orders, documentation is often as important as the product itself. Buyers may need product photos, packing lists, labels, material declarations, test reports, or specification sheets.
When sending an RFQ, include conductor size, hole size, plating, quantity, package requirement, and any required standard. If there are many sizes, use a table so the supplier can quote each line accurately.
Simple RFQ template
Use this structure when requesting copper cable lugs:
- Product type: copper cable lug
- Conductor size: for example 35 mm2
- Hole size: for example M10
- Surface: tinned copper or bare copper
- Palm: one-hole, two-hole, long palm, or custom
- Quantity per size
- Packing requirement
- Required documents
- Destination country and delivery schedule
Final advice
The best copper cable lug is the one that fits the cable, terminal, crimping tool, and project documentation at the same time. If any of these details are missing, the quotation may be fast but the match may be wrong.
