Double-seal armoured cable gland for hazardous-area electrical entries, with compression sealing at the cable inner bedding and outer sheath plus armour termination. Configure by cable construction, two sheath diameters, armour details, entry thread and body material. Final Ex marking, ingress protection, temperature range and certificate scope are confirmed for the ordered configuration.
Initial response within 1 hour during business hours.
| SKU | YX-CG-EXDB-DS |
|---|---|
| Model | YX-CG-EXDB-DS Series |
| Application | Oil and gas, LNG, petrochemical, offshore, marine, mining and hazardous-area electrical enclosures |
| Material | Nickel-plated brass or stainless steel, subject to project selection |

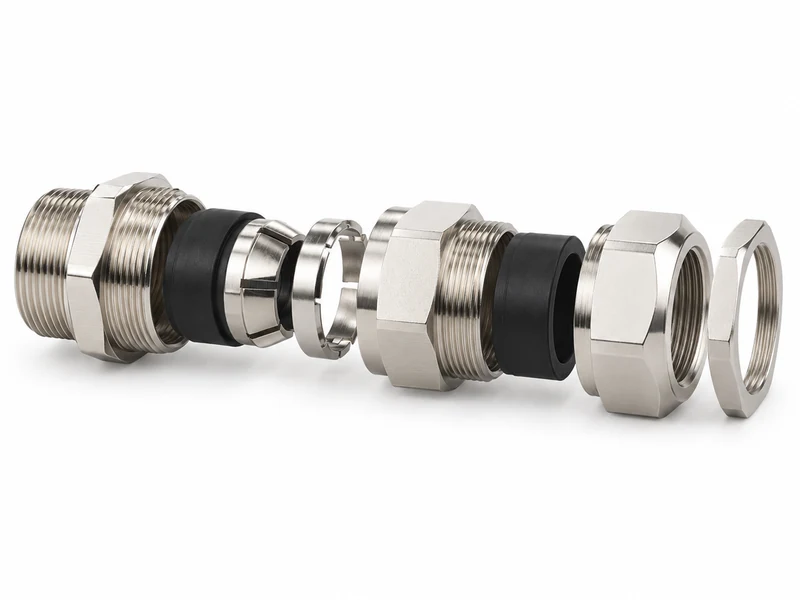

The Younxin Ex db Armoured Double Seal Cable Gland is configured for armoured cables entering hazardous-area electrical equipment. It combines armour termination with compression sealing at the cable inner bedding and outer sheath, helping create a stable cable-entry interface when the gland is correctly selected, assembled and installed.
Selection is based on the complete cable construction, including both sheath diameters and the armour dimensions. The final explosion-protection marking, certificate scope, ingress protection, service temperature, material and size are confirmed for the ordered configuration before approval or installation.
The fields below are typical project-selection options. Availability and the applicable approval scope must be confirmed for the exact size and configuration.
| Body material | Nickel-plated brass or stainless steel; specify the required stainless grade and corrosion environment. |
|---|---|
| Entry thread | Metric, NPT or G thread options can be reviewed to suit the enclosure entry. |
| Inner seal | Compression seal selected to the cable inner-bedding diameter and cable construction. |
| Outer seal | Compression seal selected to the cable outer-sheath diameter and service conditions. |
| Armour interface | Selected to the armour type, armour diameter and wire or tape thickness. |
Application suitability depends on the project hazardous-area classification, cable construction, enclosure certification, environmental exposure and installation standard.
For an accurate quotation and technical review, please send:
A coordinated accessory set may include a protective shroud, earth tag, locknut, sealing washer or O-ring, and approved adaptor or reducer where the enclosure entry requires one. Accessory material and size are matched to the selected gland and installation.
The gland uses separate compression seals at the inner bedding and outer sheath while its armour components terminate and retain the cable armour. Correct performance depends on matching all three interfaces to the cable dimensions.
A barrier gland may be required when the project specification calls for a cured seal around individual cable cores. The choice cannot be made from cable diameter alone; confirm the cable construction, equipment protection concept and applicable installation rules.
Only when the selected gland configuration covers the actual sheath and armour dimensions. SWA, steel tape, braid and aluminium armour use different interfaces, so the cable datasheet should be checked before ordering.
The required approval scheme must be stated at the enquiry stage. Certification is specific to the model, size, material and configuration. Younxin will confirm the applicable marking and provide only the documents that cover the supplied item.
Send your cable datasheet and enclosure entry details for gland selection, drawing confirmation and a project quotation.
Double-seal armoured cable gland for hazardous-area electrical entries, combining an inner-bedding seal, outer-sheath seal and armour termination. Configure the gland to the cable construction, entry thread and project requirements.
Check cable outside diameter, armoured or unarmoured construction, entry thread, gland material, sealing arrangement and required ingress protection evidence. For a strict match, send drawings, original model code, installation photos or a bill of quantities so Younxin can review the application before quotation.
