Grounding and Lightning Protection
Compare earthing conductors, electrodes, connection parts, equipment bonds and surge-protection devices. Match dimensions and materials to the approved earthing and electrical design. Compare product types and ordering checks.
Grounding Conductors and Flat Bars
Grounding Yellow Green Cable Grounding Wire Grounding Kits
Grounding Clamps and Accessories
High Earthing Withstand Low TCR Neutral Grounding Resistor
Grounding Clamps and Accessories
Transformer Neutral Point Grounding protection Device
Grounding Clamps and Accessories
Copper Weld CCS Strand Wire Clad Steel Earthing Cabe
Grounding Clamps and Accessories
High Voltage Lightning Protection Arrestor Rod High
Build the grounding and lightning protection package
Start with the approved layout and equipment schedule. Earthing materials, bonding parts and surge arresters have different selection inputs, even when they appear in one procurement package.
| Supply family | Specify before quotation | Compare products |
|---|---|---|
| Grid conductors and electrodes | Material, cross-section or width/thickness, length, rod dimensions and coupling arrangement. | Earthing systems and grounding conductors and flat bars. |
| Clamps and connections | Both mating dimensions, joint geometry, materials and corrosion compatibility. | Grounding clamps and accessories. |
| Equipment bonding | Required conductor section, bond length, terminal holes and movement at doors or joints. | Equipotential bonding products. |
| Lightning and surge protection | Electrical system data, device duty, protection level, mounting and earthing interfaces. | Lightning and surge protection. |
Check the connections as well as the main materials
A rod-to-round-conductor clamp, a tape cross joint and an equipment terminal need different dimensions. Count the connections from the layout and include couplers, test links, flexible bonds, small hardware and specified joint protection. Review dissimilar-metal interfaces and burial conditions against the design.
Compare the 5/8 inch × 6 ft copper-bonded ground rod, GH-5/8 ground rod clamp and 25×4 galvanized flat steel as separate catalog references. Confirm their interfaces and materials before treating them as a compatible assembly.
Keep arrester selection separate from earth-grid sizing

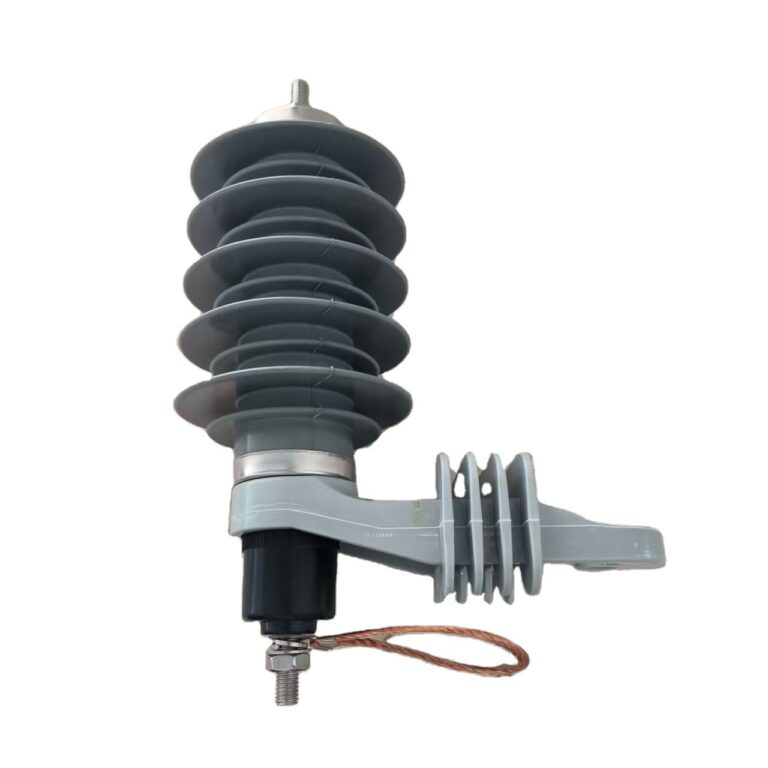

For the A-12 ZnO surge arrester, supply the system voltage, earthing arrangement, protection requirement and mounting drawing. List its earth lead and connection parts in the BOM. The arrester reference does not determine the grid dimensions or electrode quantity.
Prepare a wholesale or project RFQ
For stock supply, identify each material and size, quantity, pack labels and destination. For a substation or equipment package, attach the layout, conductor schedule, connection details and required documents. Use the substation earthing BOM guide and blank worksheet to keep units and interfaces clear.
Frequently asked questions
Can ground rod quantity be selected from a target resistance alone?
Provide the approved earthing design and soil information. The resistance target alone does not define electrode quantity, conductor dimensions or installation geometry.
What information is needed to match a grounding clamp?
Provide both mating dimensions, conductor or tape shape, materials, joint geometry and burial or environmental conditions.
Which small items should be listed in the BOM?
Check couplers, test links, flexible equipment bonds, connection hardware, labels and specified joint-protection materials against the layout.
What extra data is needed for surge arresters?
Provide electrical system voltage and earthing arrangement, required protection data, mounting interfaces and environmental conditions for the proposed model.
