220kV External Power Supply for Railway Traction Substations: Procurement Checklist for EPC Projects

High-speed railway construction does not only depend on tracks, bridges and stations. Behind every traction substation is a power supply system that must be delivered on schedule, with reliable equipment matching, clear drawings and complete material packages.

Recent industry attention around the Nanning-Yulin-Shenzhen High-Speed Railway Rongxian traction station external power 220kV line project shows why these supporting power projects matter. A 220kV external power supply line is not a small accessory package. It may involve transmission line materials, substation bay expansion, secondary protection, grounding, cable accessories, cable fixing, surge protection and installation hardware.

For EPC contractors and overseas project buyers, the practical question is:

What should be included in the procurement checklist for a 220kV railway traction substation external power supply project?

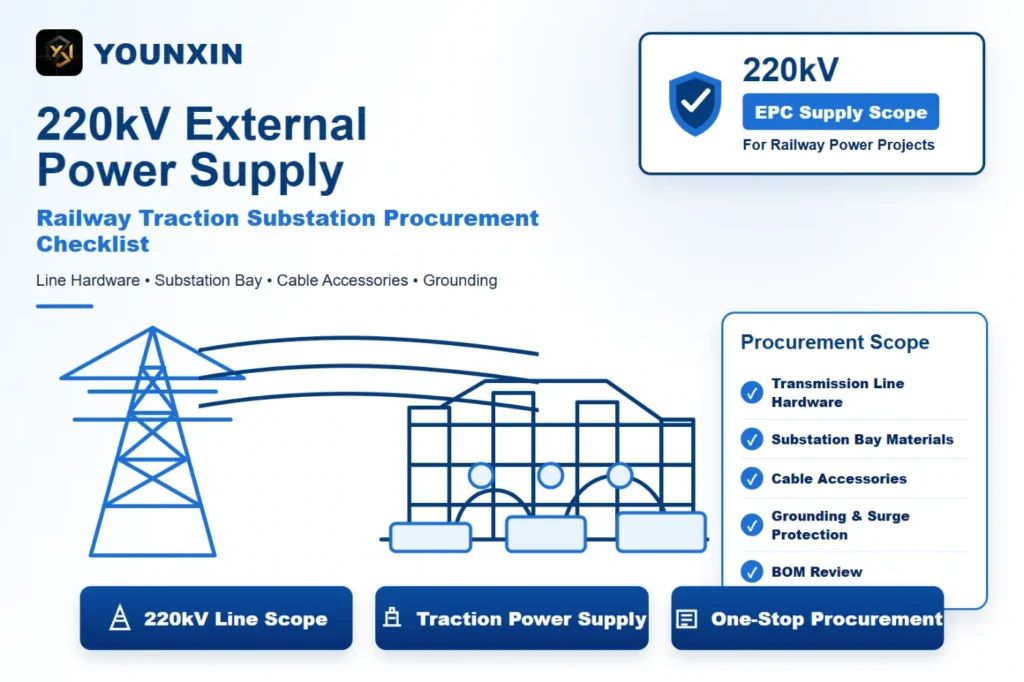

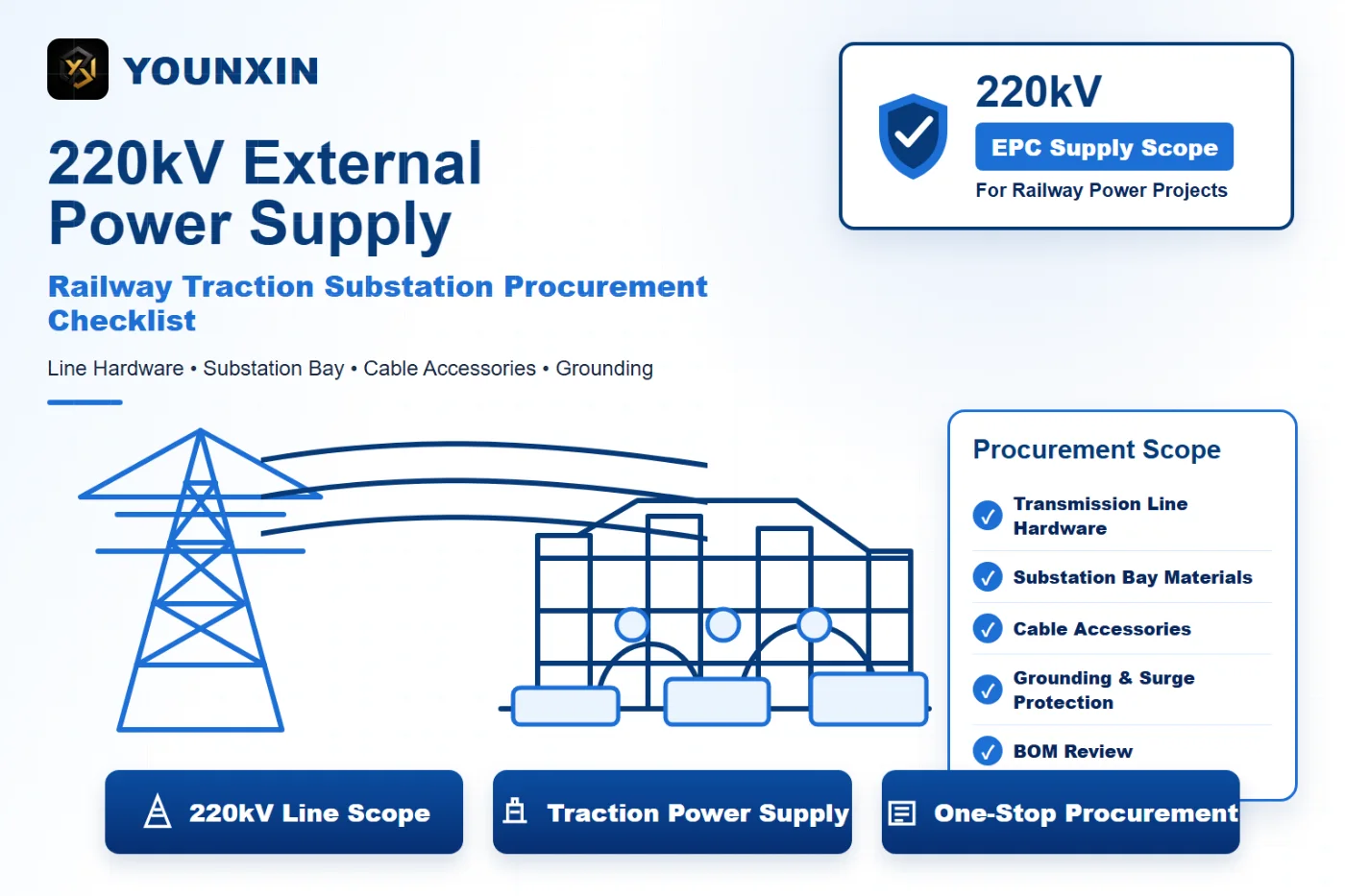

*Younxin procurement scope infographic for 220kV external power supply projects serving railway traction substations.*

Why Traction Substation External Power Projects Are Different

A railway traction substation has a direct impact on power supply reliability for railway operation. Compared with ordinary industrial power distribution, traction power projects often have stricter requirements for coordination, delivery schedule and site matching.

Typical project characteristics include:

• 220kV or 110kV external power line construction
• New or expanded outgoing bays in existing substations
• Transmission line tower and conductor hardware
• Substation primary equipment interface
• Protection, control and interlocking system updates
• Cable routes between outdoor equipment, control room and switchgear
• Grounding and lightning protection coordination
• Clear documentation for construction and acceptance

If the material list is incomplete, small missing items can delay site work even when the main equipment has arrived.

Key Procurement Scope for a 220kV External Power Supply Line

For a railway traction substation external power project, the procurement scope should usually be reviewed in several packages.

1. Transmission Line Hardware

The 220kV line section may require a complete set of overhead line accessories. Depending on the design, this can include:

• Suspension clamps
• Tension clamps
• Strain clamps
• Link fittings
• Shackles and yoke plates
• Spacers and dampers
• Insulator strings
• Bolts, nuts and washers
• Tower grounding accessories

For buyers, the key is to send the conductor type, tower drawing, insulator string drawing and fittings schedule together. A model-only inquiry is usually not enough for line hardware matching.

2. Substation Bay Expansion Materials

External power supply projects often connect to existing substations. Public tender information for similar projects has mentioned outgoing bay work, equipment material schedules and secondary system expansion.

The substation-side package may include:

• Disconnector and earthing switch accessories
• Current transformer and voltage transformer interface materials
• Surge arresters
• Busbar connection hardware
• Terminal connectors
• Control cable accessories
• Cable trays and cable fixing parts
• Grounding conductors and clamps
• Protection and interlocking system interface materials

When the project includes bay expansion, the buyer should confirm whether civil drawings, electrical primary drawings and secondary protection drawings are all available.

3. Cable Accessories and Cable Fixing

Railway traction power projects often include many cable routes inside substations and control areas. These routes may require:

• MV/HV cable terminations
• Cable joints
• Copper cable lugs
• Bimetallic cable lugs
• Cable glands
• Cable cleats
• Cable trays
• Heat shrink or cold shrink accessories
• Cable identification and protection parts

For high-current cable routes, cable cleats should not be treated as ordinary clamps. The buyer should confirm cable outside diameter, installation spacing, short-circuit requirement and whether IEC 61914 cable cleats are specified.

4. Grounding and Lightning Protection

Railway power systems must pay attention to grounding continuity and lightning protection. A practical procurement list may include:

• Copper bonded ground rods
• Grounding clamps
• Grounding conductors
• Grounding braid
• Exothermic welding powder
• Surge arresters
• Earthing accessories for towers and substations

The grounding package should be checked together with soil condition, station grounding grid design and tower grounding requirements.

5. Documentation Required for EPC Procurement

For 220kV power projects, quotation speed depends heavily on documentation quality. EPC buyers should prepare:

• Single-line diagram
• General layout drawing
• Line route drawing
• Tower and fittings drawings
• Cable schedule
• Main equipment material list
• Secondary system interface list
• Technical specification
• Required standards and certificates
• Packing and delivery requirements

If drawings are incomplete, the supplier can still provide a preliminary proposal, but final model confirmation should wait for the approved design.

One-Stop Procurement Workflow for Railway Power Projects

Younxin can support project buyers by reviewing the BOM list and matching related electrical accessories in one package.

A practical workflow is:

1. The buyer sends the BOQ, drawings and cable schedule. 2. Younxin classifies items into line hardware, substation accessories, cable accessories, grounding and protection packages. 3. Technical items are checked against voltage level, conductor size, cable diameter and installation environment. 4. Missing small accessories are identified before shipment. 5. The buyer receives a consolidated quotation instead of communicating with many suppliers separately.

This approach helps reduce repeated technical communication and improves procurement efficiency for rail, substation and transmission line projects.

RFQ Checklist for Buyers

When requesting a quotation for a 220kV railway traction substation external power supply project, include:

• Project name and voltage level
• Transmission line length and conductor type
• Tower drawings and fittings schedule
• Substation bay scope
• Cable schedule and cable outside diameter
• Grounding and lightning protection requirements
• Required standards
• Quantity list
• Delivery schedule
• Packing and shipping requirements

For overseas EPC buyers, it is also useful to mark which items are urgent, which items require certificates and which items need drawing confirmation.

Conclusion

A 220kV external power supply project for a railway traction substation is more than a transmission line. It is a coordinated procurement package covering line hardware, substation interface materials, cable accessories, cable fixing, grounding and surge protection.

For project buyers, the best way to reduce risk is to send one complete BOM list and drawing package for technical matching. Younxin can help review the accessory scope and prepare a one-stop procurement solution for railway, substation and power transmission projects.
