Composite Outdoor Cable Termination for Substations

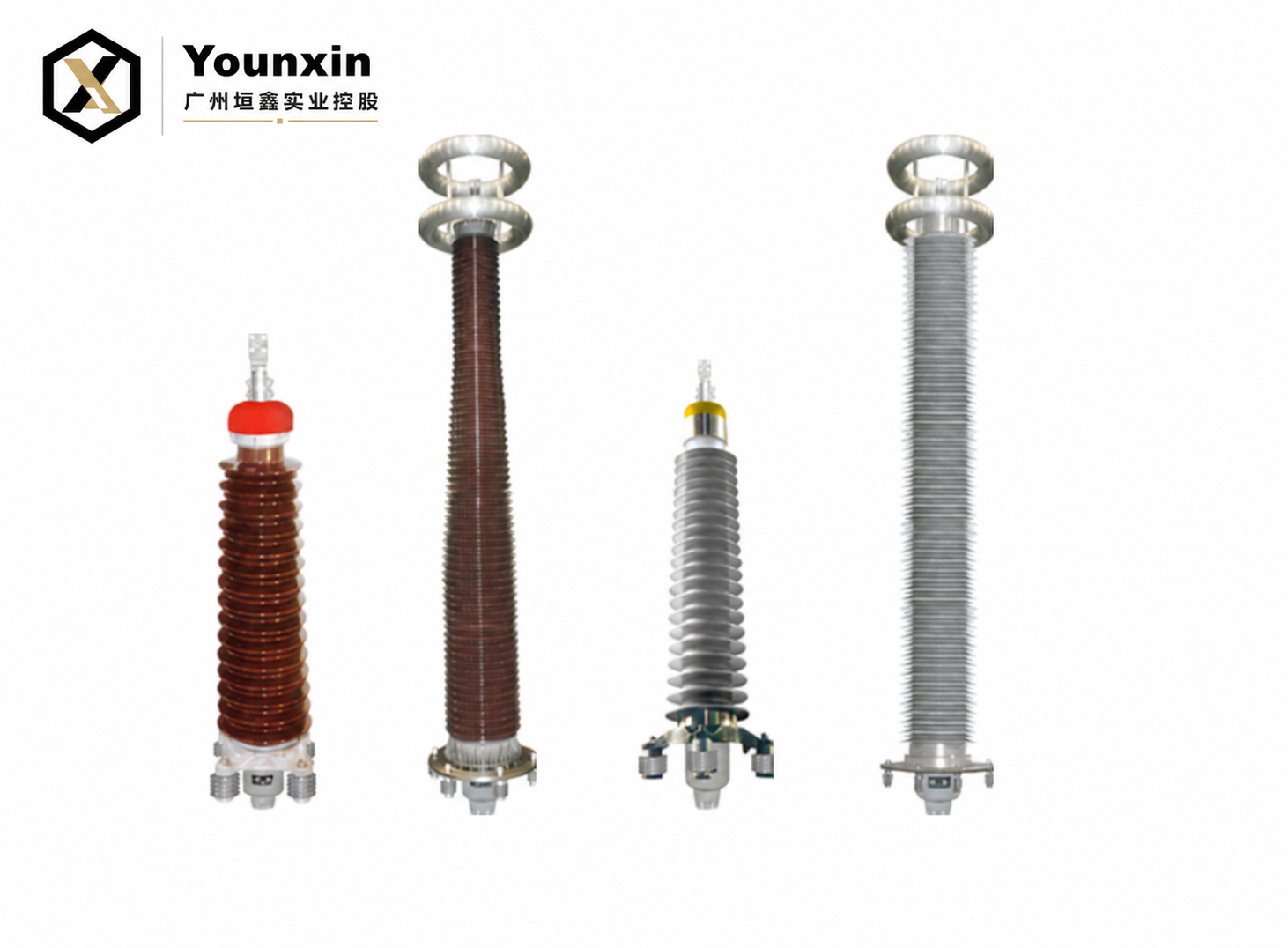

Composite-housing outdoor cable termination for substation cable-to-air connections. Select the proposed assembly from the cable data, site conditions and support drawing.
Initial response within 1 hour during business hours.
Product specifications
Specifications for the selected model are available on request. Send your model or drawing, required dimensions and quantity so we can confirm the product details before quotation.
Composite housing for an outdoor cable-to-air connection
Composite-housing high-voltage terminations connect power cables to outdoor substation equipment. Review the housing, stress-control assembly, conductor connection and lower cable sealing as one compatible termination system.
A composite housing does not by itself establish whether the internal insulation is liquid-filled or dry. Confirm the selected construction, mechanical support, installation process and compatible cable dimensions before assigning a model.
Substation and project applications
Plan the cable-to-air interface for outdoor substation busbars and overhead-line transitions. For renewable-energy collector or step-up substations and industrial receiving substations, use the project cable schedule and layout to define the connection. Oil, gas and data-center projects should specify the utility receiving-substation interface separately from downstream equipment wiring.
Prepare an engineering or distributor RFQ
| RFQ item | What to provide |
|---|---|
| Electrical designation | System voltage and U0/U(Um) cable designation; required project test specification |
| Cable construction | Cable manufacturer/type; conductor material and cross-section; insulation diameter; metallic screen/sheath and armour |
| Terminal interface | Connection palm and holes; conductor connection method; mounting and support drawing |
| Site conditions | Altitude, ambient temperature, pollution/creepage requirement, coastal exposure, wind and mechanical loads |
| Supply scope | Termination assembly, support insulators, mounting hardware, sealing/earthing components and installation documents |
| Procurement | Quantity per model, required date, destination and documentation schedule |
Send a cable schedule and termination drawing for review
Frequently asked questions
Is every composite outdoor termination a dry-type termination?
No. The housing material alone does not determine the internal insulation system. Confirm the selected construction and installation requirements.
What should be checked for a coastal substation?
Confirm the site pollution level, creepage requirement, environmental conditions, housing and fitting materials, and model-specific documentation.
What information is needed for a quotation?
Send the cable schedule, voltage designation, conductor size, insulation diameter, mounting drawing, quantity and destination for technical review.
Additional product information
Compare composite outdoor cable terminations for substation cable-to-air connections. Confirm voltage, cable dimensions, mounting and project document requirements.
